Pinch Valve - PSK Series
CHARACTERISTICS
The PSK series is an enhanced version of the Pinch Valve - PS Series, featuring a tube-holding mechanism. It is available in three configurations: Normally Closed (N.C.), Normally Open (N.O.), and Dual, which simultaneously operates both the N.O. and N.C. sides.
SPECIFICATIONS
Swipe left to see the remaining contents
| Method | Solenoid |
|---|---|
| Tubing Inner Diameter（mm） | 0.8 - 1.6 mm |
| Tubing Outer Diameter（mm） | 2.4 - 3.2 mm |
| Tubing Material | Silicone, Pharmed® |
| Type | 2-way NC, 2-way NO, or 3-way |
| Operating Pressure Range |
0～150 kPa
|
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 3 W |
| Operating Duration | Continuous |
| Outer Dimensions | 26 x 39.2 x 49.5 mm |
| Ambient Temperature Range | 0～40 ℃ |
Note: Specifications etc. may be changed at any time without notice.
List of Products
-

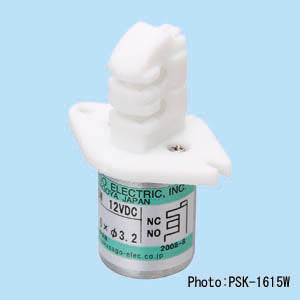

PSK Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]
![PSK Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PSK_Series_400x.jpg?v=1606180500)
PSK Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]
View details
-
PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]
![PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PSK_Series_cbadd28e-42fb-4dd2-9ca7-32134bd3686c_400x.jpg?v=1606180502)
PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]
View details
-
PSK Series [Tubing I.D.: 1.6 mm, O.D.: 3.2 mm]
![PSK Series [Tubing I.D.: 1.6 mm, O.D.: 3.2 mm]](//www.takasago-fluidics.com/cdn/shop/products/Pinch_Valves_PSK_Series_4ea76bb8-ddf1-453d-a79f-7f71bca487de_400x.jpg?v=1606180503)
PSK Series [Tubing I.D.: 1.6 mm, O.D.: 3.2 mm]
View details
