  • PSK Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]
  • PSK Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]

PSK Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

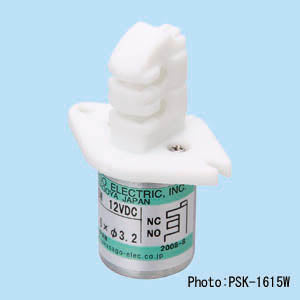

The PSK series is the Pinch Valve - PS Series with the tube holding feature. There are three types for this valve, which are N.C. (Normally Closed), N.O. (Normally Open) and Dual which has both an N.O. and N.C. side that are simultaneously operated.

Please feel free to contact us for more details??about this solenoid pinch valve, the PSK series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PSK-0815NC / PSK-0815W
Outer Dimensions W39.2 x L26 x H54 mm
Method Solenoid Pinch Valve
Type 2-way NC or 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~40℃
Rated Voltage 12 or 24 V DC
Power Consumption 3 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter(mm) 0.8 mm
Tubing Outer Diameter(mm) 2.4 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
