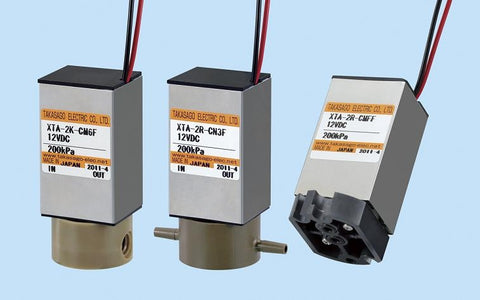

Diaphragm Valve XTA Series [2way-NC / Orifice: 1.6mm / PPS body / Silent type]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This is a diaphragm isolation valve with a microcomputer control circuit built in as standard. By making use of the characteristics of the control circuit, we have added types of valve possessing various features to this series, such as a silent type, high pressure type, and low power consumption type. Various body materials and port connections including a manifold-mountable type are available. While the open frame solenoid gives the XTA series a good cost performance, it is also covered by a stainless steel case of refined design.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W29.9 x L24 x H48.4 mm W32 x L20.6 x H53.9 mm
Method Solenoid
Type 2way-NC
Port Connection Manifold-mountable, Hose barb, 1/4-28UNF
Orifice(mm) 1.6
IN Port Pressure -90 ? 200 kPa
OUT Port Pressure (NC) 0 ? 100 kPa
Fluid Temperature Range 5 ? 50 C
Ambient Temperature Range 5 ? 50 C
Rated Voltage 12VDC, 24VDC
Power Consumption 11.2 W
Operating Duration Continuous
Body Material PPS
Seal Material EPDM, FKM
Other Wetted Materials PTFE
