  • Diaphragm Valve - XTA Series [2-way NC / Orifice: 1.6 mm / PEEK Body / Low Power Consumption]
  • Diaphragm Valve - XTA Series [2-way NC / Orifice: 1.6 mm / PEEK Body / Low Power Consumption]

Diaphragm Valve - XTA Series [2-way NC / Orifice: 1.6 mm / PEEK Body / Low Power Consumption]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

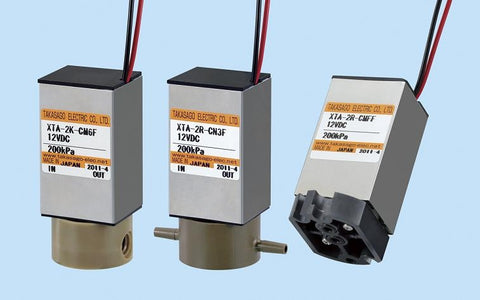

This is a solenoid diaphragm isolation valve with a microcomputer control circuit built in as a standard feature. By making use of the characteristics of the control circuit we have added types of valve possessing various features to this series such as a silent type, low power consumption type, and high pressure types. Various body materials and port connections including a manifold-mountable type are available to be used with these valves. While the design of this valve is an open frame solenoid which provides the XTA series a good cost performance, also in addition it is also covered by a stainless steel case for a refined design. Please feel free to contact us for more details about this diaphragm valve, the XTA series.

Note: Details such as specifications, etc. may be changed without notification.

VIDEO OF THE XTA SERIES

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number XTA-2K-CMFE-2
Outer Dimensions W29.9-32 x L20.6-24 x H48.4-53.9 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Manifold-Mountable, Hose Barb, M6, or 1/4-28UNF
Orifice(mm) 1.6 mm
IN Port Pressure -90~200 kPa
OUT Port Pressure (NC) 0~100 kPa
Fluid Temperature Range 5~50℃
Ambient Temperature Range 5~50℃
Rated Voltage 12 or 24 VDC
Power Consumption 2.8 W
Operating Duration Continuous
Body Material PEEK Body
Seal Material EPDM or FKM
Other Wetted Materials PTFE
Notes
Model Number Seal Material Port Connection
XTA-2K-CMFE-2 EPDM Manifold-Mountable
XTA-2K-CMFF-2 FKM
XTA-2K-CN7E-C2 EPDM Hose Barb
XTA-2K-CN7F-C2 FKM
XTA-2K-CM6E-C2 EPDM M6
XTA-2K-CM6F-C2 FKM
XTA-2K-C1/4UE-C2 EPDM 1/4-28UNF
XTA-2K-C1/4UF-C2 FKM

ADDITIONAL DRAWING(S) AVAILABLE:

-->Drawing 1

-->Drawing 2

Note: Details such as specifications, etc. may be changed without notification.
