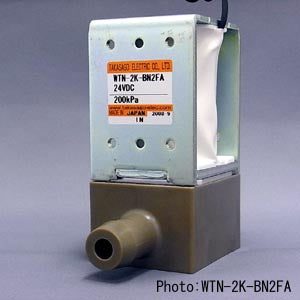

Diaphragm Valve WTN Series [2way-NC / Orifice: 6.0mm / PEEK body]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

This is a solenoid diaphragm valve with orifice 4 - 6 mm.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTN-2K-D1/4FA
Outer Dimensions 42 x 36 x 76.5 mm 85 x 36 x 76.5 mm
Method Solenoid
Type 2way-NC
Port Connection Rc1/4, 1/4-18NPT, Rc1/8, 1/8-27NPT, Hose barb
Orifice(mm) 6
IN Port Pressure -90 ? 200 kPa
OUT Port Pressure (NC) 0 ? 50 kPa
Fluid Temperature Range 0 ? 50 C
Ambient Temperature Range 0 ? 50 C
Rated Voltage 12VDC, 24VDC
Power Consumption 7.5 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM, Perfluoroelastomer
Other Wetted Materials PTFE
