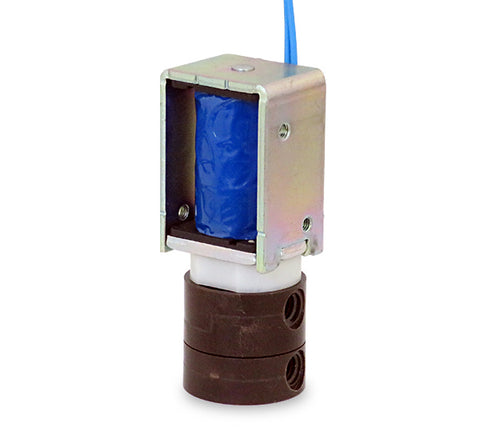

Diaphragm Valve - WTB Series [3-way / Orifice: 2.0 mm / PEEK Body / No Case]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

For the purpose of cost reduction, this diaphragm valve adopts a open framed solenoid. These WTB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. Please feel free to contact us for more details of this latching solenoid diaphragm isolation valve, the WTB series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTB-3R-MFF5
Outer Dimensions 26.5 x 24 x 62.7 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Manifold-Mountable
Orifice(mm) 2.0 mm
IN Port Pressure -50~200 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 3.4 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM
Other Wetted Materials PTFE or FKM
Notes

Note: Details such as specifications, etc. may be changed without notification.
