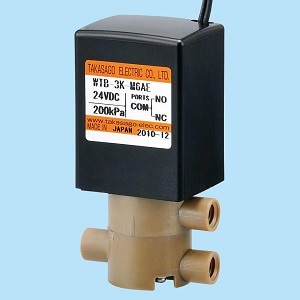

Diaphragm Valve - WTB Series [3-way / Orifice: 2.0 mm / PPS Body]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

For the purpose of cost reduction, this diaphragm valve adopts a open framed solenoid, which is covered by a plastic case. These WTB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. Please feel free to contact us for more details of this latching solenoid diaphragm isolation valve, the WTB series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTB-3R
Outer Dimensions 28.5 x 25 x 60.4 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection M6 or 1/4-28UNF
Orifice(mm) 2.0 mm
IN Port Pressure -90~200 kPa
OUT Port Pressure (NC) 0~100 kPa
OUT Port Pressure (NO) 0~100 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 3.4 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM
Other Wetted Materials PTFE or FKM
Notes
Model Number Port Connection
WTB-3R-1/4UF 1/4-28UNF
WTB-3R-M6F M6

Note: Details such as specifications, etc. may be changed without notification.
