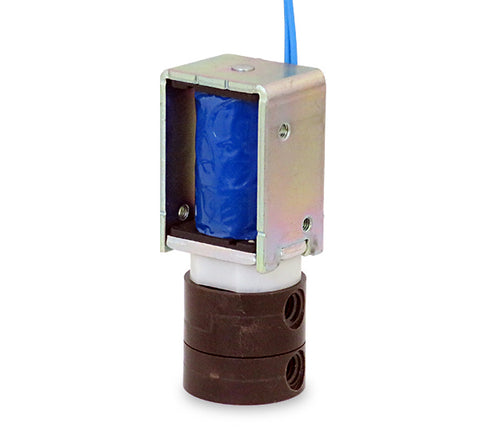

Diaphragm Valve - WTB Series [3-way / Orifice: 2.0 mm / PEEK Body / No Case]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

For the purpose of cost reduction, this diaphragm valve adopts a open framed solenoid. These WTB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. Please feel free to contact us for more details of this latching solenoid diaphragm isolation valve, the WTB series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTB-3K
Outer Dimensions 42 x 24-25 x 59.8-60.8 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Hose Barb
Orifice(mm) 2.0 mm
IN Port Pressure -50~200 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 3.4 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM or FFKM
Other Wetted Materials PTFE, FKM, or FFKM
Notes
Model Number Port Connection Seal Material
WTB-3K-N3F1 Hose Barb (N3) FKM
WTB-3K-N3G1 FFKM
WTB-3K-N4F1 Hose Barb (N4) FKM
WTB-3K-N4G1 FFKM

ADDITIONAL DRAWING(S) AVAILABLE:

-->Drawing 1

Note: Details such as specifications, etc. may be changed without notification.
