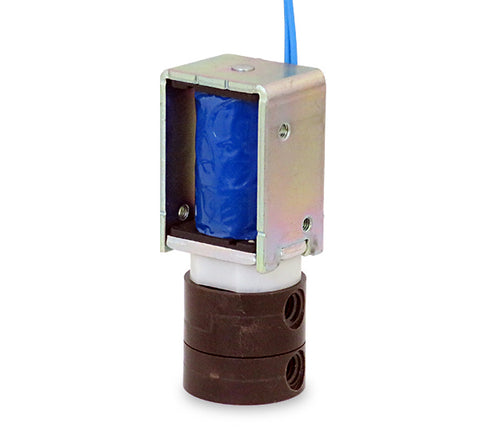

Diaphragm Valve WTB Series [3way / Orifice: 2.0mm / PEEK body / No case]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

For the purpose of cost reduction, this diaphragm valve adopts a open framed solenoid.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions 42 x 24 x 59.8 mm
Method Solenoid
Type 3way
Port Connection Hose barb
Orifice(mm) 2
IN Port Pressure -50 – 200 kPa
OUT Port Pressure (NC) 0 – 50 kPa
OUT Port Pressure (NO) 0 – 50 kPa
Fluid Temperature Range 5 – 50 C
Ambient Temperature Range 5 – 50 C
Rated Voltage 12VDC, 24VDC
Power Consumption 3.4 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM, Perfluoroelastomer
Other Wetted Materials PTFE, FKM, Perfluoroelastomer
