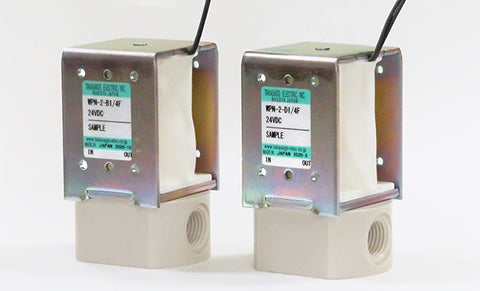

Proportional Valve - WPN Series

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

Large Diameter Proportional Valve

  1. This solenoid-driven valve can adjust the flow rate by increasing or decreasing the applied voltage/current.
  2. Has large diameter and wide flow rate range enable the valve to be used for various purposes, including ventilators.
  3. Capable of handling gases and liquids.

Please feel free to contact us for more information about this Proportional Valve, the WPN series.

Note: Details such as specifications, etc., may be changed without notice.

FLOW CHARACTERISTICS

Flow Characteristics Chart

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Method Diaphragm Isolation - Proportional Valve
Type Normally Closed Proportional Control
Rated Voltage 12 or 24 VDC
Power Consumption 7.5 W (Maximum)
Other Wetted Materials PTFE, K-M31 (Magnetic Stainless Steel), PPS, FKM, SUS304, and SUS304WPB
Notes
Model Number WPN-2-B1/4F WPN-2-D1/4F
Orifice Diameter 4.0 mm 6.0 mm
Controlled Pressure Range 0 ～ 60 L/min
（ΔP=50 kPa Air)		 0 ～ 110 L/min
（ΔP=50 kPa Air)
Operating Pressure Range 0 ～ 200 kPa 0 ～ 50 kPa

Note: Details such as specifications, etc., may be changed without notice.
