  • Diaphragm Valve - WLB Series [2-way NC / Orifice: 2.0 mm / PTFE Body]
  • Diaphragm Valve - WLB Series [2-way NC / Orifice: 2.0 mm / PTFE Body]

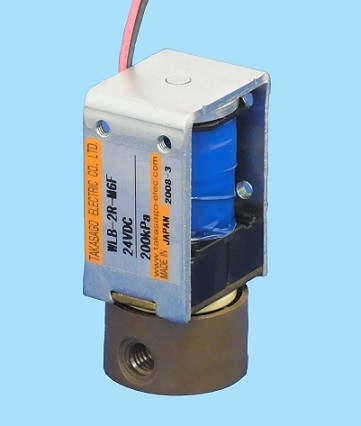

Diaphragm Valve - WLB Series [2-way NC / Orifice: 2.0 mm / PTFE Body]

$0.00 USD

Variation
Quantity
INQUIRY

FEATURES / CHARACTERISTICS

pdfpdfView WLB Series [2-way NC / Orifice: 2.0 mm / PTFE Body] Drawing PDF

The WLB series is a latching solenoid diaphragm isolation valve. Electricity is consumed when energization is only required just an instant opening or closing, so heat generation is very limited. These WLB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. Please feel free to contact us for more details of this latching solenoid diaphragm isolation valve, the WLB series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WLB-2
Outer Dimensions W26 x L25 x H55.9 mm
Method Latching Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection 1/4-28UNF or M6
Orifice（mm） 2.0 mm
IN Port Pressure 0~200 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 8 W
Operating Duration Intermittent
Body Material PTFE Body
Seal Material PTFE Body
Notes
Model Number Port Connection
WLB-2-1/4U-1 1/4-28UNF
WLB-2-M6-1 M6

Note: Details such as specifications, etc. may be changed without notification.
