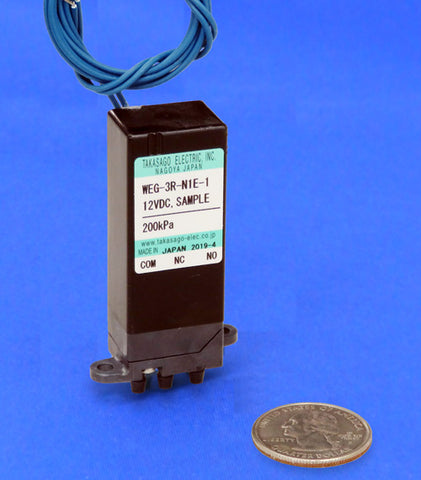

O-Ring Isolation Valve - WEG Series [2-way NC, 3-way / Orifice: 2.0mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Slim dimensions of W21 x L16 x H54.4 mm (Excluding the mounting parts and barbs) while still providing a 2 mm orifice diameter.
  2. Both IN and OUT ports are rated up to 200 kPa for the 2-way and the 3-way models.
  3. Less pumping volume than the conventional direct acting diaphragm valves.
  4. Improved cost compared to our conventional valves due to economical procurement.

STANDARD MODELS

Model Number WEG-2R-N1E WEG-3R-N1E
Type 2-way NC 3-way
Orifice Diameter 2 mm
Operating Pressure Range IN, OUT: -90 ~ 200 kPa
Port Connection Hose Barb
Fluid Temperature Range 5 ~ 50??
Ambient Temperature Range 5 ~ 50??
Rated Voltage 12 or 24 V DC
Power Consumption 2.6 W
Duty Cycle Continuous
Insulation Class Class E
Wetted Materials PPS, EPDM (Optionally FPM)

Note: Specifications etc. may be changed at any time without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

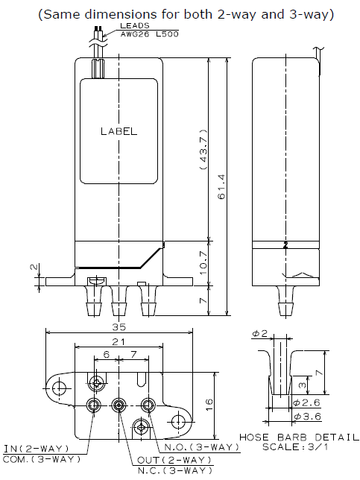

Outer Dimensions W21 x L16 x H54.4 mm (Excluding mounting parts and barbs)
Method Solenoid
Type 2-way NC or 3-way
Port Connection Hose barbs
Orifice(mm) 2 mm
IN Port Pressure -90~200 kPa
OUT Port Pressure (NC) -90~200 kPa
OUT Port Pressure (NO) -90~200 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 V DC
Power Consumption 2.6 W
Operating Duration Continuous
Body Material PPS
Seal Material EPDM or FPM
