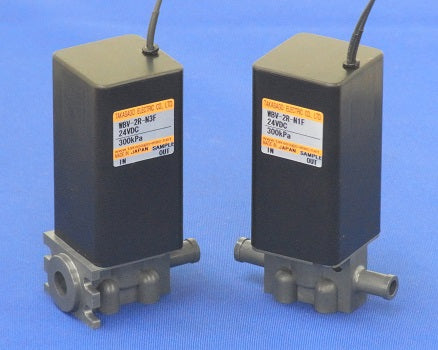

Bellows Isolation Valve - WBV Series [2-way NC / Orifice: 4.0 mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

  1. Internal structure optimized for a compact size with a larger flow (orifice diameter of 4 mm) than conventional valves.
  2. Power consumption reduced by approximately 40% compared to equivalent models by other manufactures.
  3. Operating pressure range of -90 to 300 kPa for both IN and OUT ports, enabling the valve to operate properly when a pump reverses its flow.
  4. Compatible with fluid temperatures of up to 95℃, making it applicable in dialysis machine flushing processes. Wetted materials are also resistant to washing liquids such as sodium hypochlorite.
  5. Coil covered by a case, eliminating concerns of liquids splashing on the valve during maintenance.
  6. Different types of port connections available, including O-ring types, which can be mounted directly on a balance chamber.
  7. Also suitable for waste lines of various instruments.
  8. For more details or any questions about this valve, please feel free to contact us for information.

*Note: Details including specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W48-57 x L33 x H84.8 mm
Method Bellows - Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Hose Barb or Hose Barb & O-ring (N2)
Orifice(mm) 4 mm
IN Port Pressure -90~300 kPa
OUT Port Pressure (NC) -90~300 kPa
Fluid Temperature Range 5~95°C
Ambient Temperature Range 0~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 5.8 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM or EPDM
Notes
Model Number Seal Material Port Connection
WBV-2R-N1F FKM Hose Barb
WBV-2R-N1E EPDM
WBV-2R-N2F FKM Hose Barb & O-Ring (N2)
WBV-2R-N2E EPDM
WBV-2R-N3F FKM
WBV-2R-N3E EPDM

*Note: Details including specifications, etc. may be changed without notification.
