  • Diaphragm Valve - STV Series [2-way NO / Orifice: 1.2 mm / PEEK Body / Manifold-Mountable]
  • Diaphragm Valve - STV Series [2-way NO / Orifice: 1.2 mm / PEEK Body / Manifold-Mountable]

Diaphragm Valve - STV Series [2-way NO / Orifice: 1.2 mm / PEEK Body / Manifold-Mountable]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView STV Series STV Series [2-way NO / Orifice: 1.2 mm / PEEK Body / Manifold-Mountable] Drawing PDF

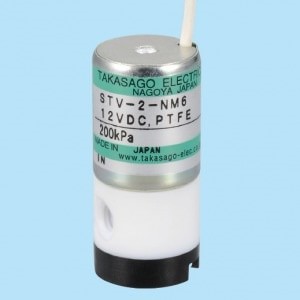

The STV series is a solenoid diaphragm isolation valve with the outer dimensions of just 30 x L22 x H36.3 mm. Highly chemical compatible materials such as PTFE, PEEK, PPS, etc. are available to use as the valve body material. This solenoid valve is a popular model among our small inert solenoid valves and is playing an active role in a wide variety of applications. Please feel free to contact us for more details about this Diaphragm Valve - the STV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number STV-02K-MFG
Outer Dimensions 30 x L22 x H36.3 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NO
Port Connection Manifold-Mountable
Orifice（mm） 1.2 mm
IN Port Pressure -50~200 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 5~50℃
Ambient Temperature Range 5~50℃
Rated Voltage 12 or 24 VDC
Power Consumption 2.5 W
Operating Duration Continuous
Body Material PEEK
Seal Material FFKM
Other Wetted Materials PTFE
Notes

Note: Details such as specifications, etc. may be changed without notification.
