Diaphragm Valve - STV Series [2-way NC / Orifice: 1.2 mm / PEEK Body / 6 Valve Manifold]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

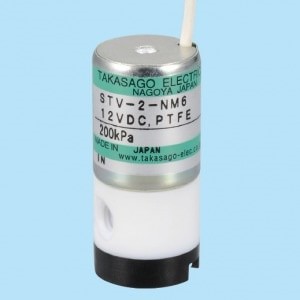

The STV series is a solenoid diaphragm isolation valve with the outer dimensions of just W30 x L150.5 x H43.5 mm. Highly chemical compatible materials such as PTFE, PEEK, PPS, etc. are available to use as the valve body material. This solenoid valve is a popular model among our small inert solenoid valves and is playing an active role in a wide variety of applications. Please feel free to contact us for more details about this Diaphragm Valve - the STV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number STV-2K-6MIF
Outer Dimensions W30 x L150.5 x H43.5 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection 1/4-28UNF or M6
Orifice(mm) 1.2 mm
IN Port Pressure -50~200 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 5~50℃
Ambient Temperature Range 5~50℃
Rated Voltage 12 or 24 VDC
Power Consumption 2.5 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM or FFKM
Other Wetted Materials PTFE
Notes

Note: Details such as specifications, etc. may be changed without notification.
