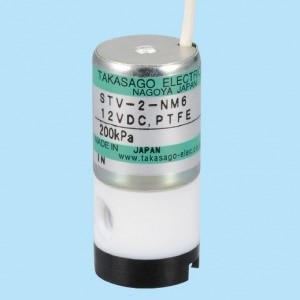

Diaphragm Valve STV Series [2way-NC / Orifice: 0.8mm / PTFE body]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

The STV series is a solenoid diaphragm valve with the outer dimensions of 20.0 x 42.5 mm. Highly chemically compatible materials PTFE, PEEK, PPS, etc. are available for the valve body material. This solenoid valve is a popular model among small inert solenoid valves and is playing an active role in a wide range of applications.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number STV-2-4MX
Outer Dimensions 52 x H45.5 mm
Method Solenoid
Type 2way-NC
Port Connection 1/4-28UNF
Orifice(mm) 0.8
IN Port Pressure -67 ? 250 kPa
OUT Port Pressure (NC) 0 ? 50 kPa
Fluid Temperature Range 0 ? 60 C
Ambient Temperature Range 0 ? 60 C
Rated Voltage 24VDC
Power Consumption 2.4 W
Operating Duration Continuous
Body Material PTFE
Seal Material PTFE
