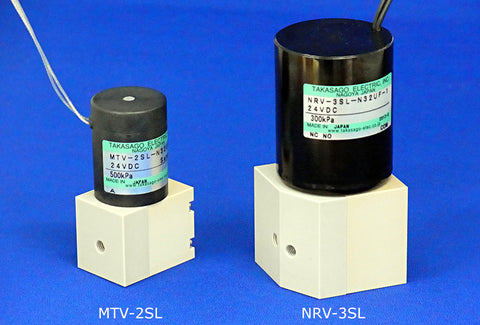

Solenoid-Driven Slider Valve

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

The solenoid-driven slider valve is a kind of shear valve in which a shutter called a slider moves vertically and shuts off the flow path. The pumping volume which occurs when a diaphragm valve opens and closes, or the dead volume in which some fluid may stay in the valve is reduced to almost zero, preventing reduction of accuracy in analysis or fluid dispensation. Furthermore, the pressure capability of this slider valve is greatly improved.

  1. No pumping volume, as there is no structural change in the internal volume when the valve operates.
  2. An excellent fluid exchangeability compared to a diaphragm solenoid valve due to its almost linear flow path and very small internal volume.
  3. Easily controlled compared to a motor-driven rotary type shear valve because the slider valve is simply driven by the ON-OFF operation of a solenoid and no special driver is required. It's also compact in size.
  4. For more details or any questions about this valve, please feel free to contact us for information.

Note: Details including specifications, etc. may be changed without notification.

PUMPING VOLUME COMPARISON

Slider Valve (MTV-3SL Series)

Graph Slider Valve (MTV-3SL Series)

Diaphragm Isolation Valve (KV-3K Series)

Graph Diaphragm Isolation Valve (KV-3K Series)

Note 1: Details including specifications, etc. may be changed without notification.

Note 2: This data is provided by Fujii T. Lab, Institute of Industrial Science, the University of Tokyo.

*Measurement Method: Measure the flow rates at the N.C. ports with a micro flowmeter when turning the valves on/off while filled with water and with the COM. and N.O. ports plugged.

FLOW RATE (COMPARISON OF ORIFICE DIAMETER)

Flow Rate Graph Takasago Slider Valve

Note: Details including specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MTV-2SL- N32UF-1
Outer Dimensions W34-38.5 x L24 x H62
Method Solenoid Non-Diaphragm Valve
Type 2-way NC or 3-way
Port Connection No.10-32UNF, M6, or 1/4-28UNF
Orifice(mm) 0.4 or 1.0 mm
IN Port Pressure -90~500 kPa
Fluid Temperature Range 10~50°C
Ambient Temperature Range 10~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 16 or 18 W
Operating Duration Intermittent (ED = 15 or 33% (1.0 mm orifice)), Maximum ON time: 45 seconds or 2 minutes (1.0 mm orifice) *Incorporation of our hit and cold circuit (option) allows a continuous energization at the rated voltage.
Seal Material PTFE, PEEK, AL2O3, or SiC (Silicone Carbide)
Remarks Internal Volume: 1.5 μL (2-way), 3.7 μL (3-way) for [0.4 mm orifice] Internal Volume: 16.5 μL (2-way), 36.2 μL (3-way) for [1.0 mm orifice]
Notes

Note: Details including specifications, etc. may change at anytime without notice.
