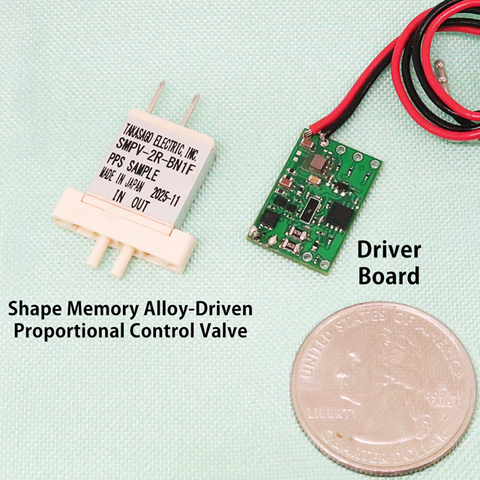

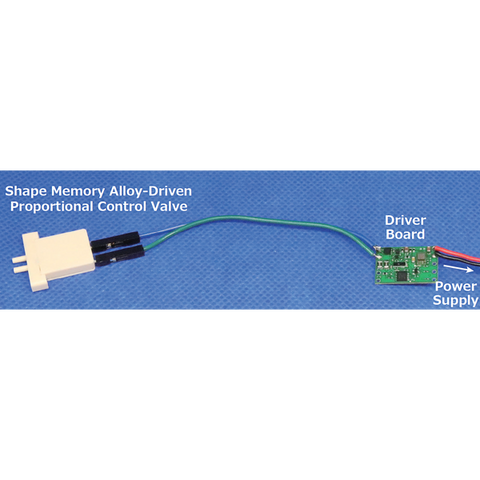

Shape Memory Alloy-Driven Proportional Control Valve SMPV Series [Under Development]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. This is a proportional valve that uses a shape memory alloy as its driving element.
  2. The flow rate can be precisely controlled by adjusting the driving current.
  3. Compact and lightweight with silent operation.
  4. Low power consumption ‒ 0.3 W or less.(driver board not included)
  5. Driver board is under development.

Note: Details such as specifications, etc., may be changed without notice.

FLOW CHARACTERISTICS

Flow Characteristics

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Primary pressure: 20.7 kPa, Fluid: Air, Ambient temperature: 25°C

Note 3: The value is for reference only.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number N.C. (Normally Closed) Proportional Type
Port Connection Hose pipe, Manifold mount (O-ring)
Orifice（mm） 0.4, 0.8
Power Consumption <0.3 W or less
Body Material PPS, PEEK
Notes

Proportional valve specifications

Orifice Diameter (mm) Ø 0.4 Ø 0.8
Controlled Pressure Range (L/min) 0 〜 0.4 (ΔP = 20.7 kPa, air) 0 〜 1.4 (ΔP = 20.7 kPa, air)
Diaphragm,O-Ring FKM, FFKM

Driver Board specifications【Under Development】

Power supply voltage/current ５VDC, ＜200 mA
（ΔP=500 kPa Air）
Control type I2C、Analog

Note: Details such as specifications, etc., may be changed without notice.
