PS Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PS Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm] Drawing PDF

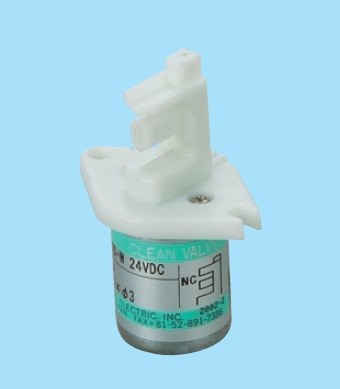

This pinch valve is the PS series; it is a standard miniature pinch valve for small diameter tubings. There are three types of this valve: N.C. (Normally Closed), N.O. (Normally Open), and Dual, which has both an N.O. and N.C. side that operates simultaneously.

Please feel free to contact us for more details about this solenoid pinch valve, the PS series.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PS-0815NC / PS-0815NO / PS-0815W
Outer Dimensions W39.2 x L26 x H49.5 mm
Method Solenoid - Pinch Valve
Type 2-way NC, 2-way NO, or 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 3 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter（mm） 0.8 mm
Tubing Outer Diameter（mm） 2.4 mm
Notes

Note: Details such as specifications, etc., may be changed without notice.
