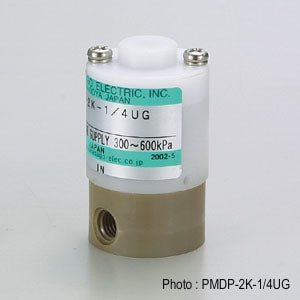

Air Operated Valve - PMDP Series [2-way NC]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView Air Operated Valve - PMDP Series [2-way NC] Drawing PDF

This valve is a small air-operated valve with 25.0 x 47.7 mm outer dimensions. The orifice diameter is 1.8 - 2.0 mm. This pump can handle a maximum pressure of up to 500 kPa, a vital feature of this air-operated valve.

For more details or any questions about this valve, please feel free to contact us for information.

Note: Details such as specifications, etc., may be changed without notice.


We also have a similar product to this air valve, it's called:

  1. Air Operated Valve - PMDP Series [3-way]

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PMDP-2K-1/4UG
Outer Dimensions φ25 x 41.9 mm
Method Air Operated Valve
Type 2-way NC
Port Connection 1/4-28UNF or M6
Orifice（mm） 2.0 mm
IN Port Pressure -100 ~ 500 kPa
OUT Port Pressure (NC) 0 ~ 300 kPa
Fluid Temperature Range 5 ~ 60°C
Ambient Temperature Range 5 ~ 60°C
Power Consumption 0 W
Body Material PEEK or PPS
Seal Material FKM or FFKM
Other Wetted Materials PTFE
Remarks Supply: 300 kPa Air
Notes
Model Number Body Material Port Connection
PMDP-2K-1/4UG PEEK 1/4-28UNF
PMDP-2R-1/4UG PPS
PMDP-2K-M6G PEEK M6
PMDP-2R-M6G PPS

Note: Details such as specifications, etc., may be changed without notice.
