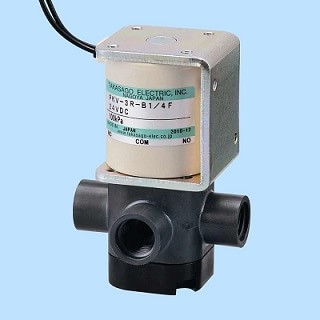

Diaphragm Valve - PKV Series [3-way / Orifice: 4.0 mm / PPS Body]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

The PKV series is a solenoid diaphragm valve with a wide range of orifice diameters from 4.0 or 6.0 mm and outer dimensions of just 40.0-56.0 x 42.0-46.0 x 71.0-85.3 mm. The standard materials that are available for the valve body are PEEK, PPS, PTFE, PCTFE, or HPVC. For the diaphragm, the available seal materials that are available are PTFE, FKM, or FFKM. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the PKV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W56 x L46 x H81.8 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Rc1/4, 1/4-18NPT, Rc1/8, or 1/8-27NPT
Orifice(mm) 4.0 mm
IN Port Pressure -50~100 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~40°C
Rated Voltage 12 or 24 VDC
100 VAC
Power Consumption 10 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM or FFKM
Other Wetted Materials PTFE or PCTFE
Notes
Model Number Port Connection Seal Material
PKV-3R-B1/4F Rc1/4 FKM
PKV-3R-B1/4G FFKM
PKV-3R-B1/4NF 1/4-18NPT FKM
PKV-3R-B1/4NG FFKM
PKV-3R-B1/8F Rc1/8 FKM
PKV-3R-B1/8G FFKM
PKV-3R-B1/8NF 1/8-27NPT FKM
PKV-3R-B1/8NG FFKM

Note: Details such as specifications, etc. may be changed without notification.
