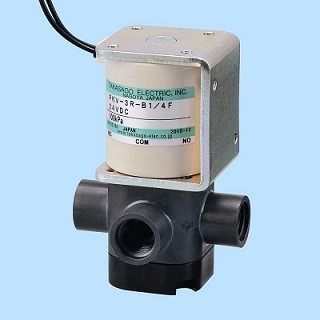

Diaphragm Valve - PKV Series [3-way / Orifice: 6.0 mm / PTFE, PPS, HPVC Body]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

The PKV series is a solenoid diaphragm valve with a wide range of orifice diameters from 4.0 or 6.0 mm and outer dimensions of just 40.0-56.0 x 42.0-46.0 x 71.0-85.3 mm. The standard materials that are available for the valve body are PEEK, PPS, PTFE, PCTFE, or HPVC. For the diaphragm, the available seal materials that are available are PTFE, FKM, or FFKM. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the PKV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W45 x 45 x H79 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Rc1/4 or 1/4-18NPT
Orifice(mm) 6.0 mm
IN Port Pressure 0~100 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 0~100°C
Ambient Temperature Range 0~50°C
Rated Voltage 24 VDC
Power Consumption 10 W
Operating Duration Continuous
Body Material PTFE, PPS, or HPVC
Seal Material FKM
Other Wetted Materials PTFE or PCTFE
Notes
Model Number Port Connection
PKV-3-D1/4FH2 Rc1/4
PKV-3-D1/4NFH2 1/4-18NPT

Note: Details such as specifications, etc. may be changed without notification.
