Diaphragm Valve - NV Series [2-way NC / Orifice: 0.4 mm]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

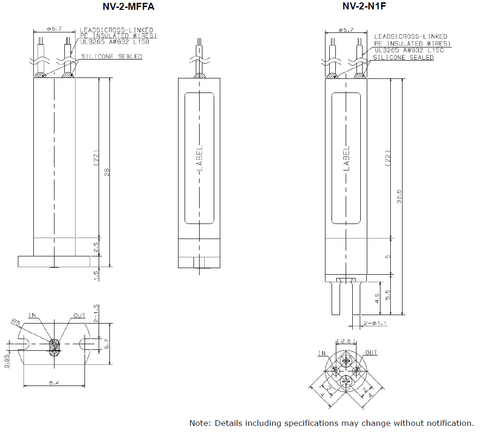

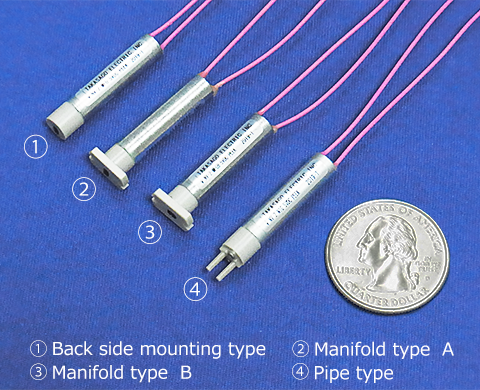

  1. Outer Dimensions: Dia. 5.7 x H26 mm (Manifold Type)
    (Back Side Mounting Type:H27 mm, Pipe Type: H32.5 mm)
  2. Highly Chemically Inert Diaphragm Valve
    PEEK and FFKM are used for wetted materials.
    Materials can be changed according to your requirements.
    (Only PEEK is used for the hose barb part.)
  3. Internal Volume only 1.2 μL (Pipe Type: 4.3 μL)
    The internal volume is 1.2μL by pursuing miniaturization of this valve.
    The internal volume of the valve chamber, which can be a dead volume, comprises only 0.75 μL of the internal volume of the valve.
  4. Latching Solenoid Valve (NLV)
    The open/closed status of the valve is maintained by permanent magnetic force, contributing to energy saving and lower heat generation. Power is required only while changing the status (Open to Closed, Closed to Open). It is necessary to reverse the current polarity to change the status.

Please feel free to contact us for more details about this ultra-small solenoid diaphragm valve, the NV series.

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PEEK is only available as a wetted material for pipes.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number NV-2-MFF
Outer Dimensions 5.7 x H27-32.5 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Gasket (Optionally Pipe)
Orifice(mm) 0.4 mm
IN Port Pressure 0~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 10~50°C
Ambient Temperature Range 10~50°C
Rated Voltage 5 or 12 VDC
Power Consumption 1.2 W
Operating Duration Intermittent ED = 40 %
Body Material PEEK (Optionally PPS)
Seal Material FFKM (Optionally FKM)
Weight Approximately 3 g
Notes

Note: Details such as specifications, etc., may be changed without notice.
