  • Diaphragm Valve - NRV Series [3-way / Orifice: 6.0 mm / PTFE Body / Soft Seal]
  • Diaphragm Valve - NRV Series [3-way / Orifice: 6.0 mm / PTFE Body / Soft Seal]

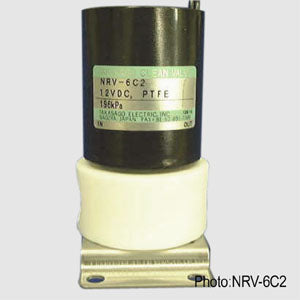

Diaphragm Valve - NRV Series [3-way / Orifice: 6.0 mm / PTFE Body / Soft Seal]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView NRV Series [3-way / Orifice: 6.0 mm / PTFE Body / Soft Seal] Drawing PDF

This is the NRV series, it is a solenoid diaphragm isolation valve. This valve has the orifice diameter of just φ4.0-6.0 mm. This diaphragm valve has valve bodies that are machined from a variety of materials which allows it to be available for this diaphragm valve. Select the port connection from Rc1/4, Rc1/8, 1/4-18NPT, or 1/8-27NPT. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the NRV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number NRV-6C2NV-4
Outer Dimensions 40 x H84 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Rc1/8
Orifice（mm） 6.0 mm
IN Port Pressure -50~150 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 5~60°C
Ambient Temperature Range 5~60°C
Rated Voltage 12, 24, or 90 VDC
100 VAC
Power Consumption 5.5 W
Operating Duration Continuous
Body Material PTFE
Seal Material FFKM
Other Wetted Materials PTFE or PCTFE
Notes

Note: Details such as specifications, etc. may be changed without notification.
