Diaphragm Valve - NRV Series [3-way / Orifice: 4.0 mm / PTFE, PEEK, PPS Body]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView NRV Series [3-way / Orifice: 4.0 mm / PTFE, PEEK, PPS Body] Drawing PDF

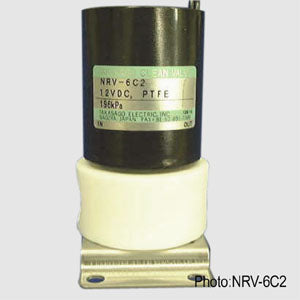

This is the NRV series, it is a solenoid diaphragm isolation valve. This valve has the orifice diameter of just φ4.0-6.0 mm. This diaphragm valve has valve bodies that are machined from a variety of materials which allows it to be available for this diaphragm valve. Select the port connection from Rc1/4, Rc1/8, 1/4-18NPT, or 1/8-27NPT. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the NRV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number NRV-4E2B
Outer Dimensions 45 x H84 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Rc1/4 or 1/4-18NPT
Orifice（mm） 4.0 mm
IN Port Pressure -90~200 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 5~60°C
Ambient Temperature Range 5~60°C
Rated Voltage 12 or 24 VDC
Power Consumption 5.5 W
Operating Duration Continuous
Body Material PTFE, PEEK, or PPS
Seal Material FKM
Other Wetted Materials PTFE or PCTFE
Notes
Model Number Port Connection
NRV-4E2B Rc1/4
NRV-4E2NB 1/4-18NPT

Note: Details such as specifications, etc. may be changed without notification.
