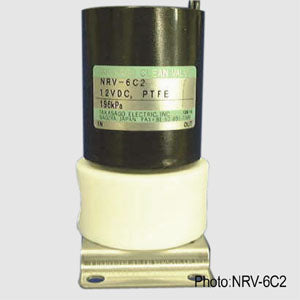

Diaphragm Valve - NRV Series [2-way NO / Orifice: 6.0 mm / PTFE Body]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

This is the NRV series, it is a solenoid diaphragm isolation valve. This valve has the orifice diameter of just φ4.0-6.0 mm. This diaphragm valve has valve bodies that are machined from a variety of materials which allows it to be available for this diaphragm valve. Select the port connection from Rc1/4, Rc1/8, 1/4-18NPT, or 1/8-27NPT. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the NRV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number NRV-6O1
Outer Dimensions 40-45 x H83 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NO
Port Connection Rc1/8, 1/8-27NPT, Rc1/4, or 1/4-18NPT
Orifice(mm) 6.0 mm
IN Port Pressure -50~200 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~60°C
Rated Voltage 12, 24, or 90 VDC
100 VAC
Power Consumption 5.5 W
Operating Duration Continuous
Body Material PTFE
Seal Material PTFE
Notes
Model Number Port Connection
NRV-6O1 Rc1/8
NRV-6O1N 1/8-27NPT
NRV-6O2 Rc1/4
NRV-6O2N 1/4-18NPT

ADDITIONAL DRAWING(S) AVAILABLE:

-->Drawing 1

Note: Details such as specifications, etc. may be changed without notification.
