Diaphragm Valve NPV Series [2way / Orifice: 4.0mm]

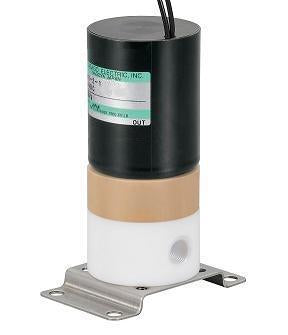

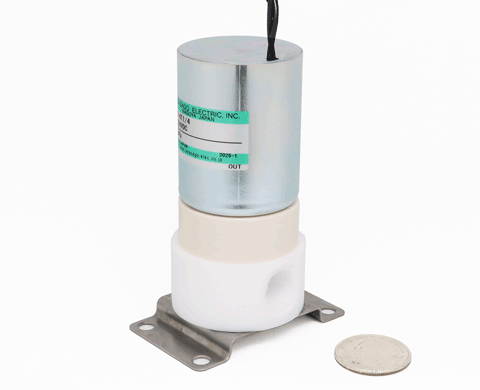

Diaphragm Valve NPV Series [2way / Orifice: 4.0mm]

$0.00 USD

Variation

Quantity

pdf

pdf

View Diaphragm Valve NPV Series [2way / Orifice: 4.0mm] Drawing PDF

FEATURES / CHARACTERISTICS

This is a solenoid-driven proportional diaphragm valve for chemical fluids whose flow is controllable by changing the input voltage.??

Has a very high chemical resistance due to all PTFE wetted parts.
Flow is controllable by changing the input voltage.
Has a comparatively large orifice diameter of 4 mm, which can cover a wide range of flows.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number	NPV-4T1/4
Outer Dimensions	W40 x L66 x H95 mm
Method	Solenoid
Type	2way-NC
Port Connection	Rc1/4, Rc1/8
Orifice（mm）	4
IN Port Pressure	0 ` 100 kPa
OUT Port Pressure (NC)	0 ` 50 kPa
Fluid Temperature Range	10 ` 60
Ambient Temperature Range	10 ` 60
Rated Voltage	15VDC - 22VDC
Power Consumption	7 W
Operating Duration	Continuous
Body Material	PTFE
Seal Material	PTFE
