NP Series [Tubing I.D.: 6 mm, O.D.: 8 mm / 2-way]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

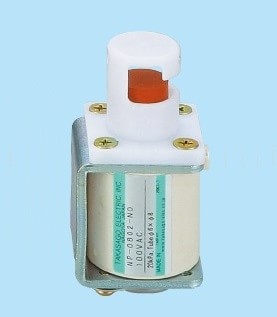

The NP series is a solenoid pinch valve and an improved model of the Pinch Valve - PK Series. There is a slit in the tube holder that allows a user to insert tubing from the side of the pinch valve, this makes it more convenient and easy to use.

Please contact us for more details??about this solenoid pinch valve, the NP series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number NP-0802-NC / NP-0802-NO
Outer Dimensions W44.5 x L36 x H82-87.3 mm
Method Solenoid Pinch Valve
Type 2-way NC or 2-way NO
IN Port Pressure 0~50 kPa
Ambient Temperature Range 0~40°C
Rated Voltage 12, 24, or 90 VDC
100 VAC
Power Consumption 10 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter(mm) 6 mm
Tubing Outer Diameter(mm) 8 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
