Diaphragm Valve - NLV Series [2-way / Orifice: 0.4 mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This microvalve is a latching solenoid valve. This valve maintains its open/closed status by a permanent magnetic force, contributing to energy saving and lower heat generation. The outer dimensions of this microvalve are the diameter of 5.7 x H27 mm (Pipe Type: H32.5 mm), and the internal volume is only at 4.3 μL. The internal volume of the valve chamber, which could potentially be a dead volume, comprises only 0.75 μL of this. The wetted materials are PEEK and FFKM, which are highly chemically inert. We can make adjustments to materials according to your needed requirements.

Please feel free to contact us for more details about this micro solenoid diaphragm valve, the NLV series.

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: PEEK is only available as a wetted material for pipes.

SPECIFICATIONS

Swipe left to see the remaining contents

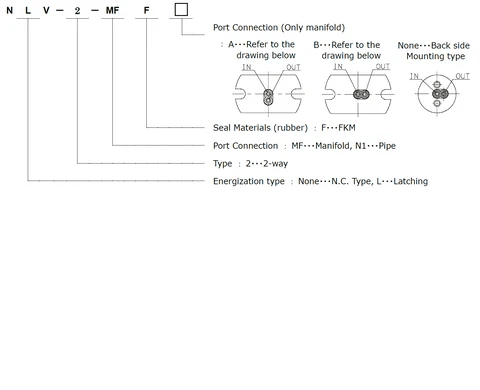

Model Number NLV-2-MFF
Outer Dimensions 5.7 x H27-32.5 mm
Method Latching Solenoid Diaphragm Isolation Valve
Type 2-way

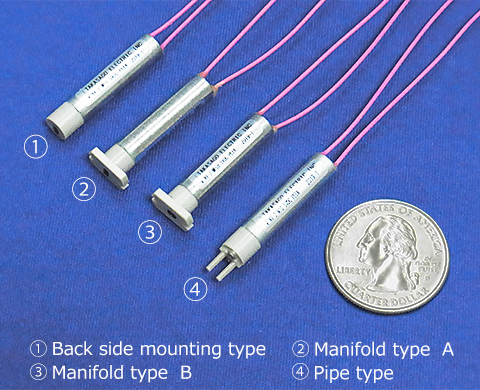

Port Connection Gasket or Pipe
Orifice(mm) 0.4 mm
IN Port Pressure 0~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 10~50°C
Ambient Temperature Range 10~50°C
Rated Voltage 5 or 12 VDC
Power Consumption 1.2 W
Operating Duration Intermittent ED = 40 %
Body Material PPS or PEEK
Seal Material FKM or FFKM
Notes

Note: Details such as specifications, etc., may be changed without notice.
