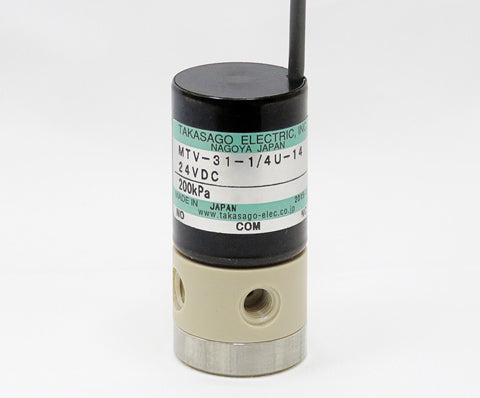

Diaphragm Valve - MTV Series [3-way / Orifice: 1.0 mm / PTFE Body / High Pressure]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

This solenoid diaphragm isolation valve has an outer diameter of just 26.0 mm and represents the TAKASAGO brand. A variety of models are available for this valve. The PTFE machined diaphragm has high chemical compatibility. There are a wide variety of valve bodies available such as molded bodies or machined bodies, also threaded port connections or hose barb connections, etc.

Please feel free to contact us for more details about this solenoid diaphragm isolation valve, the MTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MTV-3-1/4UGH-11
Outer Dimensions 25 x H59.8 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection 1/4-28UNF or M6
Orifice(mm) 1.0 mm
IN Port Pressure -90~600 kPa
OUT Port Pressure (NC) 0~500 kPa
OUT Port Pressure (NO) 0~500 kPa
Fluid Temperature Range 5~70°C
Ambient Temperature Range 5~50°C
Rated Voltage 5 VDC
Power Consumption 2.6 W
Operating Duration Continuous
Body Material PTFE
Seal Material FFKM
Other Wetted Materials PTFE or SUS316
Notes

Note: Details such as specifications, etc. may be changed without notification.
