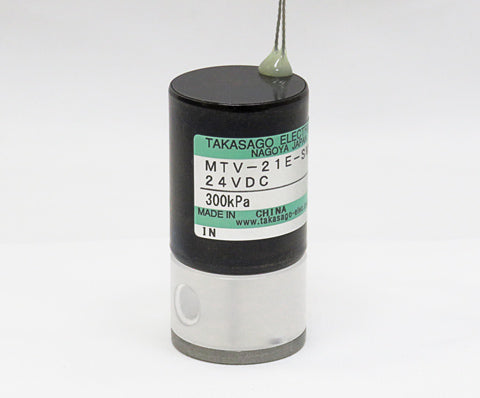

Diaphragm Valve - MTV Series [2-way NO / Orifice: 1.6 mm / HPVC Body]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

This solenoid diaphragm isolation valve has an outer diameter of just 26.0 mm and represents the TAKASAGO brand. A variety of models are available for this valve. The PTFE machined diaphragm has high chemical compatibility. There are a wide variety of valve bodies available such as molded bodies or machined bodies, also threaded port connections or hose barb connections, etc.

Please feel free to contact us for more details about this solenoid diaphragm isolation valve, the MTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MTV-2-1/4UFG
Outer Dimensions 25 x H52.7 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NO
Port Connection 1/4-28UNF or M6
Orifice（mm） 1.6 mm
IN Port Pressure -90~200 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~60°C
Rated Voltage 12, 24, or 90 VDC
100 VAC
Power Consumption 1.9 W
Operating Duration Continuous
Body Material HPVC
Seal Material FFKM
Other Wetted Materials PTFE
Notes

Note: Details such as specifications, etc. may be changed without notification.
