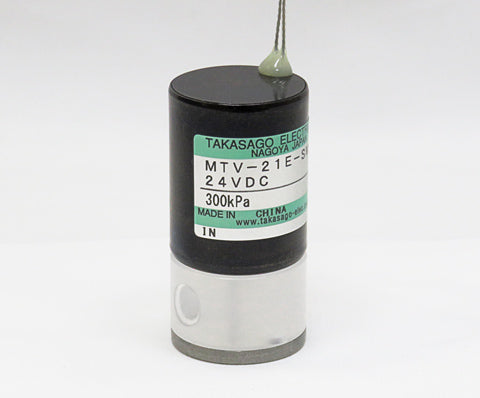

Diaphragm Valve MTV Series [2way-NC / Orifice: 1.6mm / PTFE, PCTFE, HPVC body]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This solenoid diaphragm valve has the outer diameter 26.0 mm and represents TAKASAGO brand. Variety of models are available. The PTFE machined diaphragm has a high chemical compatibility. There are a wide variety of valve bodies such as molded bodies or machined bodies, thread port connections or hose barb connections, etc.

Please contact us for more details of this solenoid diaphragm valve, MTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions 25 x H50.7 mm
Method Solenoid
Type 2way-NC
Port Connection 1/4-28UNF, M6
Orifice(mm) 1.6
IN Port Pressure -100 ` 300 kPa'
OUT Port Pressure (NC) 0 ` 100 kPa
Fluid Temperature Range 0 ` 60
Ambient Temperature Range 0 ` 60
Rated Voltage 12VDC, 24VDC, 90VDC, 100VAC
Power Consumption 1.9 W
Operating Duration Continuous
Body Material PTFE, PCTFE, HPVC
Seal Material PTFE
Other Wetted Materials -
