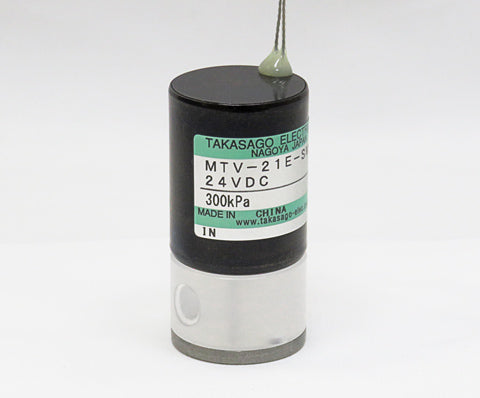

Diaphragm Valve - MTV Series [2-way NC / Orifice: 1.5 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

This solenoid diaphragm isolation valve has an outer diameter of just 26.0 mm and represents the TAKASAGO brand. A variety of models are available for this valve. The PTFE machined diaphragm has high chemical compatibility. There are a wide variety of valve bodies available such as molded bodies or machined bodies, also threaded port connections or hose barb connections, etc.

Please feel free to contact us for more details about this solenoid diaphragm isolation valve, the MTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MTV-21-NM6-5
Outer Dimensions 25 x H59 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection M6
Orifice（mm） 1.5 mm
IN Port Pressure -100~300 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~60°C
Rated Voltage 24 VDC
Power Consumption 1.9 W
Operating Duration Continuous
Body Material PCTFE
Seal Material PTFE
Other Wetted Materials -
Notes

Note: Details such as specifications, etc. may be changed without notification.
