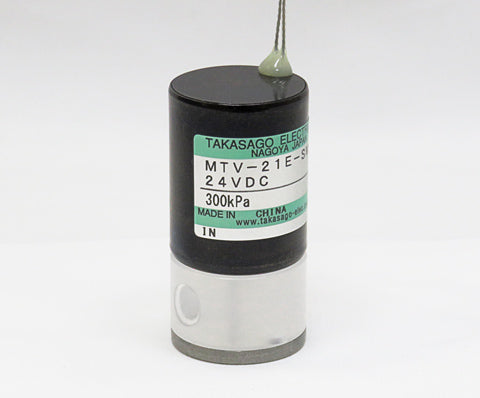

Diaphragm Valve MTV Series [2way-NC / Orifice: 2.0mm / PPS body / high pressure / Mold coil]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This solenoid diaphragm isolation valve has an outer diameter of just 26.0 mm and represents the TAKASAGO brand. A variety of models are available for this valve. The PTFE machined diaphragm has high chemical compatibility. There are a wide variety of valve bodies available such as molded bodies or machined bodies, also threaded port connections or hose barb connections, etc.

Please feel free to contact us for more details about this solenoid diaphragm isolation valve, the MTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions 26 x H48.7 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection 1/4-28UNF or M6
Orifice(mm) 2.0 mm
IN Port Pressure -90~700 kPa
OUT Port Pressure (NC) 0~200 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 24 VDC
Power Consumption 4.4 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM
Other Wetted Materials PTFE
Notes
Model Number Port Connection
MTV-2R-N1/4UFH 1/4-28UNF
MTV-2R-NM6FH M6

Note: Details such as specifications, etc. may be changed without notification.
