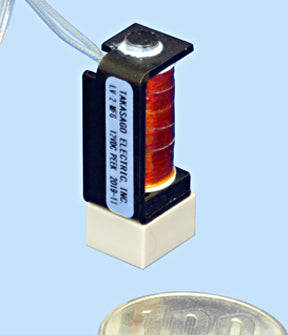

This manifold mountable diaphragm valve has the dimensions of just 8.9 x 10.4 mm, giving it a footprint of less than 1 cm2. This solenoid diaphragm valve simultaneously exhibits a very small internal volume of 3.3 μL at the IN port and 8.3 μL at the OUT port, and a shortening of the flow-path between ports.
Please feel free to contact us for more details about this micro solenoid diaphragm valve, the LV series.
Note: Details including specifications, etc. may be changed without notification.
SPECIFICATIONS
Swipe left to see the remaining contents
Model Number |
LV-2-M5E
|
Outer Dimensions |
W8.9 x L10.4-28.5 x H16.5-28 mm
|
Method |
Solenoid Diaphragm Isolation Valve
|
Type |
2-way NC
|
Port Connection |
M5 or Manifold-Mountable Type
|
Orifice(mm) |
0.8 mm
|
IN Port Pressure |
0~100 kPa
|
OUT Port Pressure (NC) |
0~50 kPa
|
Fluid Temperature Range |
5~50°C
|
Ambient Temperature Range |
5~40°C
|
Rated Voltage |
12 or 24 VDC
|
Power Consumption |
1.2 W
|
Operating Duration |
Continuous
|
Body Material |
PPS or PEEK
|
Seal Material |
EPDM, FPM, or FFKM
|
Notes |
Note: Details including specifications, etc. may be changed without notification.
|
