Diaphragm Valve - KV Series [2-way NC / Orifice: 0.8 mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

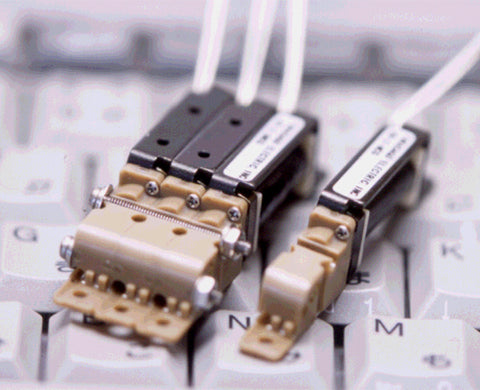

This is the KV series it is a diaphragm isolation valve with the width of just 6 mm. Substantial shortening of the flow-path between the ports and reduction in mounting space is possible because of the use of the manifold mountable type. The internal volume of this valve is just 10 μL on both the IN and OUT ports.

Please feel free to contact us for more details about this micro solenoid diaphragm valve, the KV series.

Note: Details including specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number KV-2-NCF
Outer Dimensions W6 x L50 x H12.5 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Manifold-Mountable Type
Orifice(mm) 0.8 mm
IN Port Pressure 0~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 5~40°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 1.8 W
Operating Duration Continuous
Body Material PPS or PEEK
Seal Material FPM or FFKM
Notes

Note: Details including specifications, etc. may be changed without notification.
