Hinged Pinch Valve (compatible with status detection functions)

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

A pinch valve that makes tube replacement easy

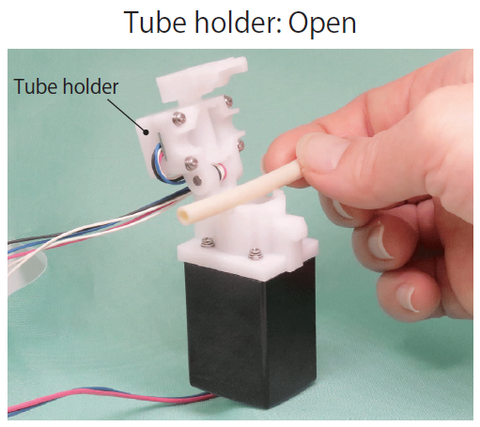

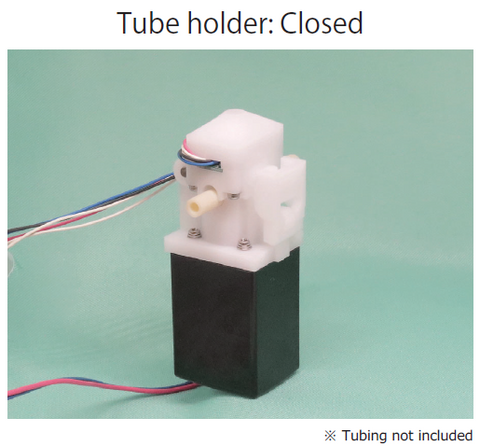

  1. The tube holder can be opened and closed, making tube replacement easy.
  2. Suitable for devices where tubes are replaced frequently.
    Typical Applications: hemodialysis devices, blood purification devices,automated cell culture devices, cell sorters, etc.
  3. Optional functions include tube-missing detection and valve open/close status monitoring. *
    * Depending on the tube type and size, detection may not be possible.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W25 × D33 × H78
Method Pinch Valve
Type Latch type *1
Tube Material PharMed®BPT *2
Tubing Inner Diameter（mm） 3
Tubing Outer Diameter（mm） 5
Notes
Type Latch type *1
Tube diameter I.D. 3 × O.D. 5 mm
Tubing Material PharMed®BPT *2
Outer Dimensions W25 × D33 × H78 mm

Note: Details such as specifications, etc., may be changed without notice.

*1: Can be configured as either N.C. or N.O. depending on the application.

*2: "PharMed®" is a trademark of Saint-Gobain Performance Plastics.
