High-Temperature High-Pressure Valve - WTB Series [Orifice: 1.6 mm]

$0.00 USD

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

Handles up to 175°C, 1500 kPa, and Highly Corrosive Media

  1. Employs a unique mechanism to absorb dimensional changes of the plastic body resulting from temperature changes—no leakage with high-temperature media.
  2. Suitable for applications such as COD measurement instruments, even with heated sulfuric acid as the media.
  3. PFA body at present is molded to help reduce cost.

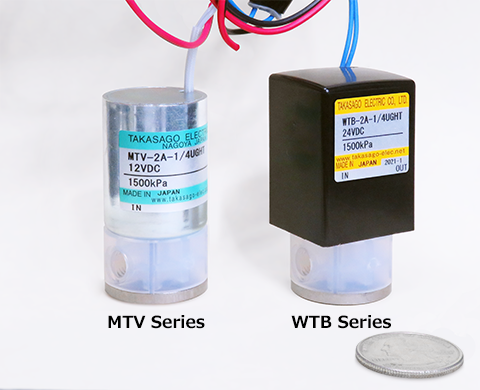

  4. Optionally the best-selling high-temperature, high-pressure molded MTV series (left image) and the lower cost solenoid version WTB series (right image) are available.

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF HIGH-TEMPERATURE HIGH-PRESSURE VALVE - WTB SERIES


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTB-2A-M6（1/4U）GHT
Outer Dimensions 25.3 x 28.2 x 54.2 mm
Type 2-way Normally Closed (NC)
Port Connection M6 or 1/4-28UNF
Orifice（mm） 1.6 mm
IN Port Pressure 0 ～ 1,500 kPa
OUT Port Pressure (NC) 0 ～ 100 kPa
Fluid Temperature Range 5 ~ 175˚C
Ambient Temperature Range 5 ~ 40˚C
Rated Voltage 12 or 24 VDC
Power Consumption 26.3 W(INRUSH) or 4.2 W(HOLDING) *1
Body Material PFA
Other Wetted Materials PFA, PTFE, FFKM (Perfluoroelastomer)
Insulation Class B-Type
Dielectric Strength AC 1000V　60s
Notes

Note: Details such as specifications, etc., may be changed without notice.

*1: With hit and hold circuit.
