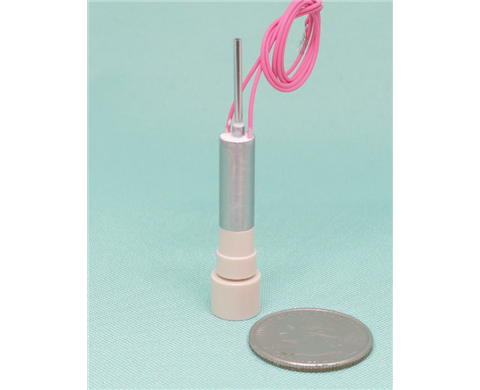

  • High-SpeedSolenoidValve

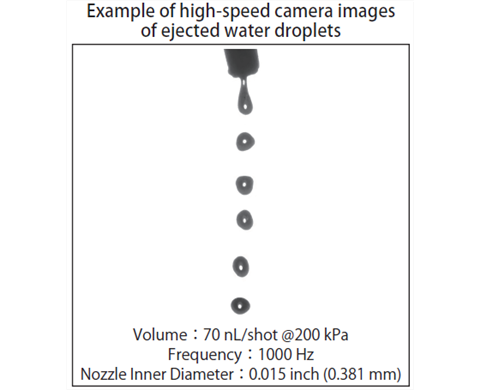

  • Example of high-speed camera images of ejected water droplets
  • High-Speed Solenoid Valve 【Under development】
  • High-SpeedSolenoidValve
  • Example of high-speed camera images of ejected water droplets
  • High-Speed Solenoid Valve 【Under development】

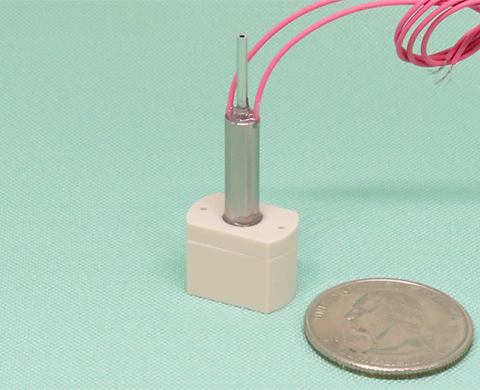

High-Speed Solenoid Valve 【Under development】

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

For nanoliter-scale droplet dispensing

  1. This is a high-speed 2-way normally closed (N.C.) valve.
  2. Nanoliter-scale droplet dispensing is possible.
  3. Suitable for applications requiring high-speed, precise micro-volume control Typical Applications: reagent dispensing and micro-droplet dispensing of ink or paint.
  4. The orifice diameter and fluid conditions can be customized to suit your application. Please feel free to contact us.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Type 2-Way N.C.（ Normally closed）
Orifice（mm） φ0.4 mm
IN Port Pressure 0 ~ 200 kPa
Rated Voltage 12 VDC
Power Consumption 15 W (Rated), 0.27 W (Holding)
Body Material PPS
Seal Material FKM
Other Wetted Materials SUS430, SUS304
Maximum Operating Frequency

1000 Hz *1
Notes
Fluid Media Fluids chemically compatible with materials below
Response time 0.5 ms *1
Duty Cycle Intermittent *2

Note: Details such as specifications, etc., may be changed without notice.

*1: Performance when using our drive waveform.

*2: Depending on the drive conditions, continuous power supply is also supported. Please contact us for details.
