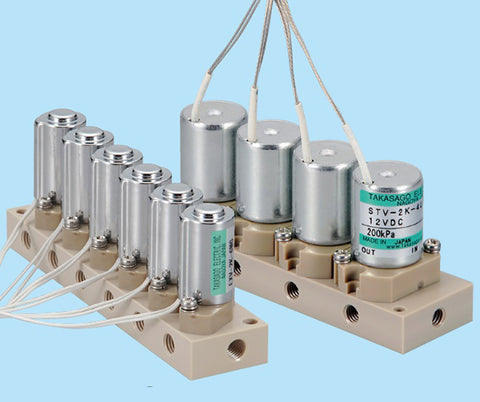

Diaphragm Valve - EXV Series [2-way NC / Orifice: 1.0 mm / PEEK Body / 4 Manifolds]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

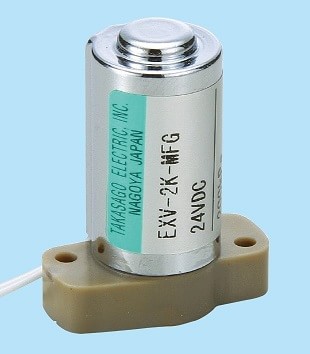

This is a diaphragm isolation manifold mountable valve with a molded body. It is small and compact with the dimensions of just W14 mm x H32 mm. You can choose the body material from the options of highly chemically resistant PEEK or PPS.

Please feel free to contact us for more details about this Diaphragm Valve - the EXV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number EXV-2K-4MF
Outer Dimensions W24 x L73.5 x H43.6 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection M6 or 1/4-28UNF
Orifice(mm) 1.0 mm
IN Port Pressure -20~200 kPa
OUT Port Pressure (NC) -20~200 kPa
Fluid Temperature Range 5~40°C
Ambient Temperature Range 5~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 2.8 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM or FFKM
Other Wetted Materials PTFE
Notes
Model Number EXV-2K-4MF EXV-2K-4MG EXV-2K-4UF EXV-2K-4UG
Port Connection M6 1/4-28UNF
Seal Material FKM FFKM FKM FFKM

*Note: Details including specifications, etc. may be changed without notification.
