TFS Takasago Fluidic Systems

  • Diaphragm Valve EXV Series [2way-NC / Orifice: 1.0mm / PPS body / 2 manifolds]
  • Diaphragm Valve EXV Series [2way-NC / Orifice: 1.0mm / PPS body / 2 manifolds]
  • Diaphragm Valve EXV Series [2way-NC / Orifice: 1.0mm / PPS body / 2 manifolds]
  • Diaphragm Valve EXV Series [2way-NC / Orifice: 1.0mm / PPS body / 2 manifolds]

Diaphragm Valve EXV Series [2way-NC / Orifice: 1.0mm / PPS body / 2 manifolds]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

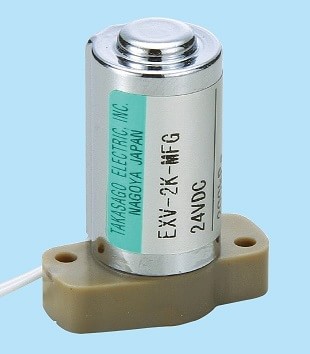

The EXV series is a manifold mountable valve with a molded body. This solenoid diaphragm valve is small with dimensions of W 14 x H 32 mm. You can choose the body material from the highly chemically resistant PEEK or PPS.

Please contact us for more details of this solenoid diaphragm valve, EXV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W24 x L40.5 x H43.6 mm
Method Solenoid
Type 2way-NC
Port Connection M6, 1/4-28UNF
Orifice(mm) 1
IN Port Pressure -20 – 200 kPa
OUT Port Pressure (NC) -20 – 200 kPa
Fluid Temperature Range 5 – 40 °C
Ambient Temperature Range 5 – 40 °C
Rated Voltage 12VDC, 24VDC
Power Consumption 2.8 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM, Perfluoroelastomer
Other Wetted Materials PTFE
