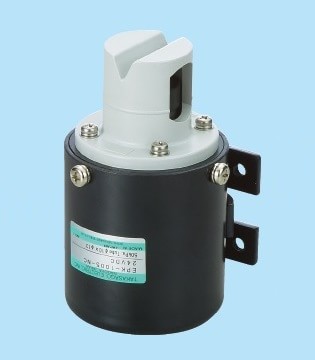

EPK Series [Tubing I.D.: 10 mm, O.D.: 13 mm / 2-way NC]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

This EPK series is a standard pinch valve for large diameter tubings of 10 - 15 mm. This pinch valve has a lineup of N.C. (Normally Closed) types and N.O. (Normally Open) types.

Please contact us for more details??about this??pinch valve, the EPK series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number EPK-1005-NC
Outer Dimensions 62 x H112 mm
Method Solenoid Pinch Valve
Type 2-way NC
IN Port Pressure 0~50 kPa
Ambient Temperature Range -10~40°C
Rated Voltage 12, 24, 90, or 180 VDC
100, 110, 200, or 220 VAC
Power Consumption 60 W
Operating Duration Intermittent
Tube Material Silicone
Tubing Inner Diameter(mm) 10 mm
Tubing Outer Diameter(mm) 13 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
