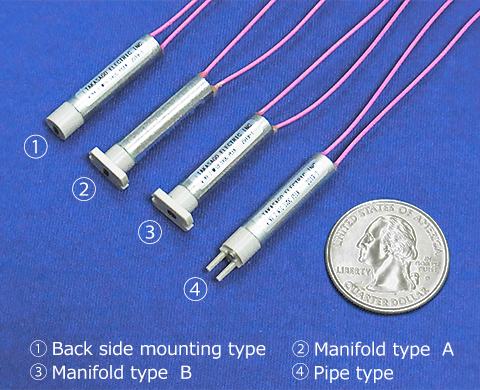

This is an ultra-small solenoid diaphragm valve with the outer dimensions and diameter of 5.7 x H27 mm (Pipe Type: H32.5 mm), a feature is that its highly chemically inert. The internal volume of this micro valve is only 1.2 μL (Pipe Type: 4.3 μL) and the internal volume of the valve chamber, which can be a dead volume, comprises of only 0.75 μL of the internal volume of the valve. PEEK and FFKM are used as the wetted materials for this valve. Materials are able to be adjusted according to your needed requirements.
Please feel free to contact us for more details about this ultra-small solenoid diaphragm valve, the NV series.
Note 1: Details including specifications, etc. may be changed without notification.
Note 2: PEEK is only available as a wetted material for pipes.
SPECIFICATIONS
Swipe left to see the remaining contents

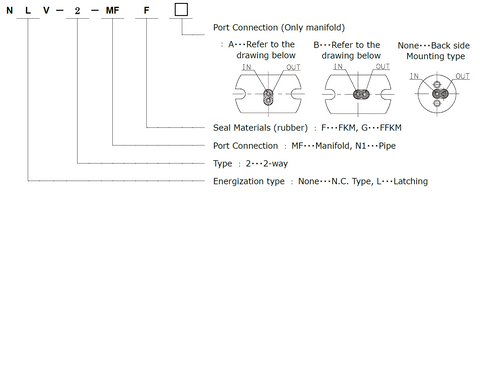

Model Number |
NV-2-MFF
|
Outer Dimensions |
5.7 x H27-32.5 mm
|
Method |
Solenoid Diaphragm Isolation Valve
|
Type |
2-way NC
|
Port Connection |
Gasket or Pipe
|
Orifice(mm) |
0.4 mm
|
IN Port Pressure |
0~100 kPa
|
OUT Port Pressure (NC) |
0~50 kPa
|
Fluid Temperature Range |
10~50°C
|
Ambient Temperature Range |
10~50°C
|
Rated Voltage |
5 or 12 VDC
|
Power Consumption |
1.2 W
|
Operating Duration |
Intermittent ED = 40 %
|
Body Material |
PPS or PEEK
|
Seal Material |
FKM or FFKM
|
Notes |
Note: Details including specifications, etc. may be changed without notification.
|
