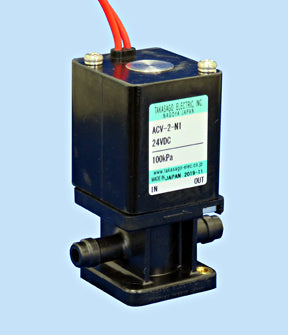

Diaphragm Valve - ACV Series [2-way NC / Orifice: 3.0 mm]

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

The ACV series is a 2-way NC solenoid diaphragm isolation valve with a molded actuator, a molded body and an elastomer diaphragm. It has the dimension size of just W34 x L47 x H62 mm. The port connections are the hose barbs to which silicone tubing can be connected directly to. Please feel free to contact us for more details of about this Diaphragm Valve - the ACV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions W34 x L47 x H62 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Hose Barb
Orifice(mm) 3.0 mm
IN Port Pressure -55~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 5~60°C
Ambient Temperature Range 0~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 5 W
Operating Duration Continuous
Body Material PPO
Seal Material FKM
Notes
Model Number Port Connection
ACV-2-N1 Hose Barb (N1)
ACV-2-N2 Hose Barb (N2)

Note: Details such as specifications, etc. may be changed without notification.
