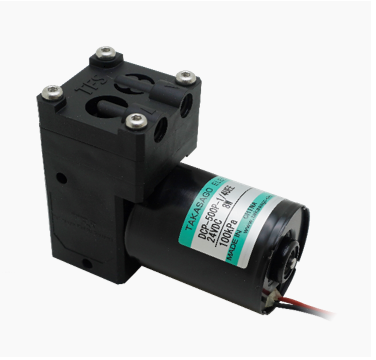

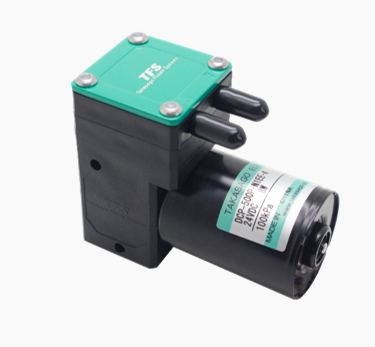

Diaphragm Liquid Pump - DCP-400/500 Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Typical flow rates of 400 mL/min or 500 mL/min and operating pressure range of -60 to 100 kPa.
  2. Brushless motors are used for longer life and lower noise than conventional products.
  3. No metal materials are used as wetted parts (see table below). Suitable for a wide variety of fluids.

Note: Details such as specifications, etc., may be changed without notice.

FLOW CURVE

Flow Curve of Diaphragm Pump - DCP-500P-N1EE(FF)

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: All the values are only for reference and not guaranteed.



SPECIFICATIONS

Swipe left to see the remaining contents

Model Number DCP-400P- N1(1/4U)EE, DCP-400P- N1(1/4U)FF, DCP-500P- N1(1/4U)EE, DCP-500P- N1(1/4U)FF

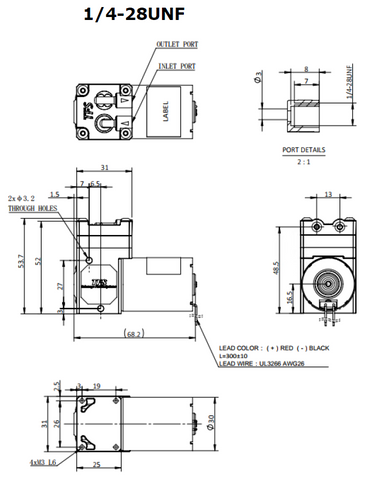

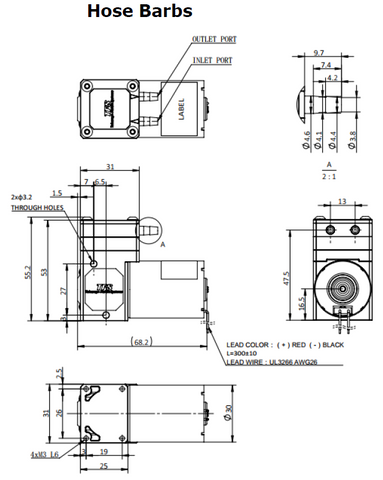

Outer Dimensions 31 × 68.2 × 55.2 mm (Hose Barbs), 31 × 68.2 × 53.7 mm (1/4-28UNF)
Motor DC Brushless Motor
Port Connection Hose Barbs, 1/4-28UNF
Fluid Temperature Range 0–80°C
Ambient Temperature Range 0–40°C
Rated Voltage 12 or 24 VDC
Power Consumption 8 W
Other Wetted Materials PP, EPDM, or FKM
Flow Rate 400 mL/min, 500 mL/min*
Discharge Pressure 100 kPa
Weight 150 g
Notes
Model Number DCP-400P-N1EE DCP-400P-1/4UEE DCP-400P-N1FF DCP-400P-1/4UFF DCP-500P-N1EE DCP-500P-1/4UEE DCP-500P-N1FF DCP-500P-1/4UFF
Motor DC Brushless Motor
Typical Flow Rate * 400 mL/min 500 mL/min
Max. Discharge Pressure 100 kPa
Max. Vacuum Pressure -60 kPa
Fluid Temperature Range 0 ～ 80 ℃
Ambient Temperature
Range		 0 ～ 40 ℃
Rated Voltage 12 VDC, 24 VDC
Power Consumption 8 W
Port Connection Hose Barbs, 1/4-28UNF
Wetted Materials PP, EPDM PP, FKM PP, EPDM PP, FKM
Outer Dimensions 31 × 68.2 × 55.2 mm (Hose Barbs), 31 × 68.2 × 53.7 mm (1/4-28UNF)
Weight 150 g

Note: Details such as specifications, etc., may be changed without notice.

*: At 0 kPa back pressure.
