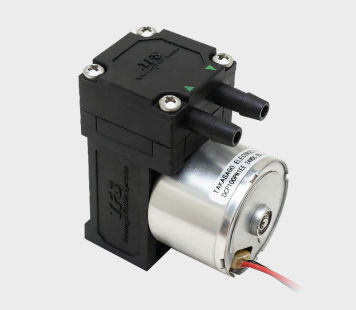

Diaphragm Liquid Pump - DCP-100 Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Typical flow rates of 100 mL/min and operating pressure range of -30 to 100 kPa.
  2. Brushless motors are used for longer life and lower noise than conventional products.
  3. No metal materials are used as wetted parts (see table below). Suitable for a wide variety of fluids.
  4. The compact, high-precision motor makes the pump ideal for integration into various OEM equipment such as analytical instruments, laboratory equipment, and cleaning systems.

Note: Details such as specifications, etc., may be changed without notice.

FLOW CURVE (DCP-100P-N1EE & DCP-100P-N1TG)

Flow Curve of Diaphragm Pump - DCP-100

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: All the values are only for reference and are not guaranteed.



SPECIFICATIONS

Swipe left to see the remaining contents

Model Number DCP-100P-N1EE / DCP-100P-N1TG

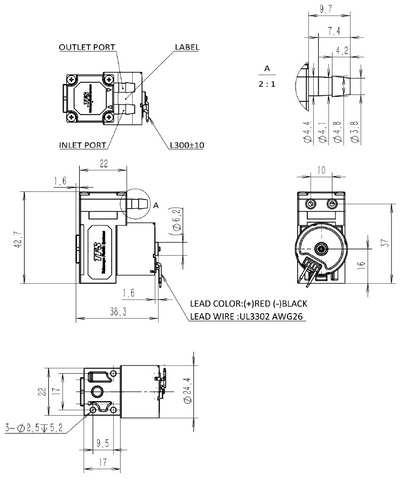

Outer Dimensions ø24.4 × 42.7 × L38.3 mm
Motor DC Brushless Motor
Port Connection Hose Barbs
Fluid Temperature Range 0–80°C
Ambient Temperature Range 0–40°C
Rated Voltage 12 or 24 VDC
Power Consumption 6 W
Other Wetted Materials PP, EPDM, PTFE, or FFKM
Flow Rate 100 mL/min*
Discharge Pressure 100 kPa
Weight App.50 g
Notes
Model Number DCP-100P-N1EE DCP-100P-N1TG
Typical Flow Rate* 100 mL/min
Maximum Vacuum Pressure -30 kPa
Fluid Temperature Range 0 ～ 80 ℃
Ambient Temperature Range 0 ～ 40 ℃
Wetted Materials PP and EPDM PP, PTFE, and FFKM

Note: Details such as specifications, etc., may be changed without notice.

*: At 0 kPa back pressure.
