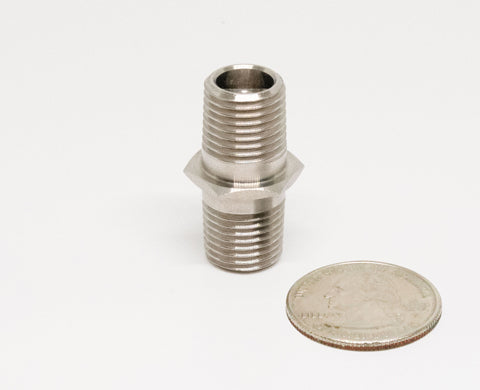

Non-Diaphragm Relief Valve - CMV Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

Protection mechanism against abnormal pressure in the flow path.

  1. Relief Valve with a non-diaphragm design, constructed from SUS304, EPDM, and other materials for the wetted parts.

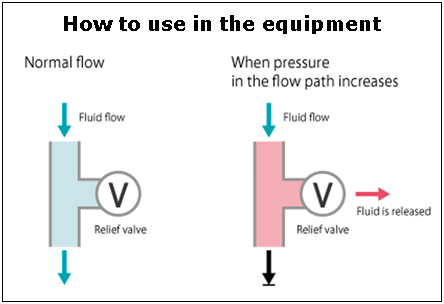

  2. Functions as a protective mechanism for the flow path by relieving pressure when abnormal pressure increases are detected.
  3. Can also be used as a check valve.
  4. Custom pressure settings and specifications are available upon request. Please contact us for further details.

How to use as a check valve

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Relief Pressure 2.98 ～ 98 kPa*1, 2
Port Connection R1/4, R1/8, RC1/4, RC1/8
Orifice（mm） φ3, φ7*3
Seal Material EPDM (Optionally FKM or FFKM)
Other Wetted Materials SUS304 or SUS304WPB
Notes

Note: Details such as specifications, etc., may be changed without notice.

*1: We will tailor the desired relief pressure to your specified range.

*2: For models without an adjustment mechanism, please note that the relief pressure may vary slightly (%) due to structural factors.
For more information on accuracy and adjustment options, please consult with us directly.

*3: Additional orifice diameters can also be customized upon request.
Please contact us for further details.
