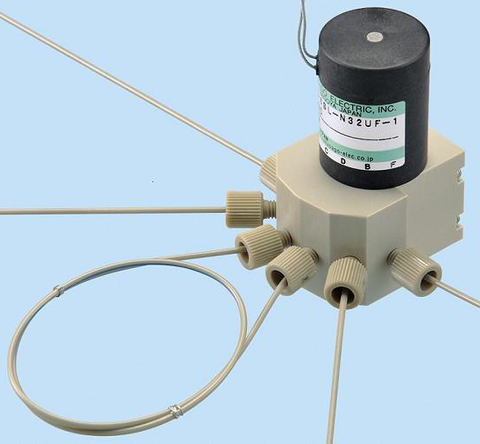

2-Position 6-Port Valve

$0.00 USD

Variation
Quantity

FEATURES / CHARACTERISTICS

For Sample Injection or Metering in a LC

This is the first solenoid-driven linearly actuating valve that promotes the same functions as a motor-driven rotary valve. Since its solenoid driven, a stepper motor or a driver is not required for its operation. It is economical and easy to operate, when compared to the conventional rotary valve.

Please feel free to contact us for more information about this 2-Position 6-Port Valve.

Note: Details such as specifications, etc. may change without notice.

EXAMPLE OF CONNECTIONS

Example of Connections for 2-Position 6-Port Valve

Note: Details such as specifications, etc. may change without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Method Non-Diaphragm Valve
Port Connection No.10-32UNF
Orifice(mm) 0.4 mm
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~50°C
Rated Voltage 12 or 24 VDC
Other Wetted Materials PTFE, PEEK, and SiC (Silicone Carbide)
Notes
Model Number MTV-6SL-N32UF-1 MLV-6SL-32UFH-1
Operating Pressure Range 0~500 kPa 0~2.5 MPa
Power Consumption 23 W
(3.6 W Holding with power save electronics)
18 W
(3 W Holding with power save electronics)
Internal Volume 9.0 μL
Life Expectancy 100 Thousand Cycles (Not a guaranteed value)

Note: Details such as specifications, etc. may be changed without notice.

*: This product carries a circuit that controls the voltage by timer. It is not recommndable to run the ON/OFF cycles at over 0.5 Hz.
