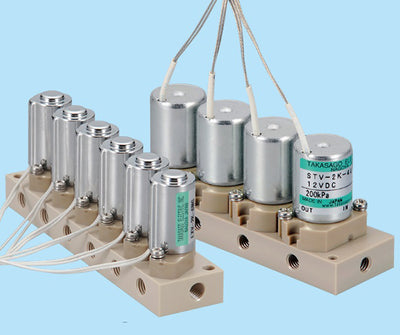

STV Series [With Manifold]
CHARACTERISTICS
The STV series with manifold is a solenoid diaphragm isolation valve with just [22-30] x [83-150.5] x [42.5-43.5] mm outer dimensions. Highly chemical-compatible materials, such as PTFE, PEEK, PPS, etc., are available for the valve body material. This solenoid valve is a popular model among our small inert solenoid valves and plays an active role in various applications.
We also have an available a version of this isolation valve without the manifold mounted, the Diaphragm Isolation Valve - STV Series [With Manifold].
Please feel free to contact us for more details about the Diaphragm Valve - STV series [With Manifold].
Note: Details such as specifications, etc., may be changed without notice.
SPECIFICATIONS
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 0.8～1.2 mm |
| Type | 2-way NC or 2-way NO |
| IN Port Pressure | -90～250 kPa |
| OUT Port Pressure (NC) | 0～50 kPa |
| OUT Port Pressure (NC)(NO) | 0～50 kPa |
| Port Connection | M6, 1/4-28UNF, Hose Barb, or Manifold-Mount |
| Body Material | PEEK, PPS, PTFE, or POM/td> |
| Seal Material | PTFE, FKM, or FFKM |
| Other Wetted Materials | PTFE or Al2O3 |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 1.7～2.9 W |
| Operating Duration | Continuous |
| Outer Dimensions | [22-30] x [83-150.5] x [42.5-43.5] mm |
| Fluid Temperature Range | 0～50℃ |
| Ambient Temperature Range | 0～50℃ |
Note: Details such as specifications, etc., may be changed without notice.
