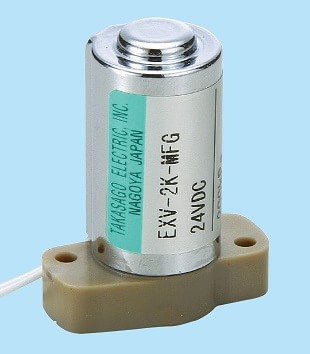

EXV Series [Manifold-Mountable]
CHARACTERISTICS
These diaphragm valves are diaphragm isolation manifold mountable valves with a molded body. It is small and compact with just W14 mm x H32 mm dimensions. You can choose the body material from highly chemically resistant PEEK or PPS options.
We also have an available a version of this isolation valve with the manifold mounted, the Diaphragm Isolation Valve - EXV Series [With Manifold].
Please feel free to contact us for more details about the Diaphragm Valve - EXV series [Manifold-Mountable].
Note: Details such as specifications, etc., may be changed without notice.
SPECIFICATIONS
| Method | Solenoid Diaphragm Isolation Valve |
|---|---|
| Orifice（mm） | 1.0 mm |
| Type | 2-way NC |
| IN Port Pressure | -20～200 kPa |
| OUT Port Pressure (NC) | -20～200 kPa |
| Port Connection | Manifold-Mountable |
| Body Material | PEEK, PPS, or PCTFE |
| Seal Material | FKM or FFKM |
| Other Wetted Materials | PTFE |
| Rated Voltage | 12 or 24 VDC |
| Power Consumption | 2.8 W |
| Operating Duration | Continuous |
| Outer Dimensions | 14.0 x 25.0 x 31.7 mm |
| Fluid Temperature Range | 5～40℃ |
| Ambient Temperature Range | 5～40℃ |
Note: Details such as specifications, etc., may be changed without notice.
